Surgery

Implant

Implant form:

• Calculated using FEM analyses and documented in scientific studies.
• Cylindrical-conical design with self-tapping thread.
• Uniform, gentle loading of the bone, confirmed by studies.
• Optimal grading of the implant diameters so the appropriate implant can be used for the indication in question.

Implant geometry

The thread geometry allows:

• Quick, atraumatic implant insertion.
• High primary stability.
• Blasted/etched implant surface in the endosseous region.

The inner geometry is a distinguishing feature:

• Suitable for 2 connector geometries – conical and platform.
• High resistance to torsion and high bending strength when under permanent loading.
• Zero backlash transmission of bending moments.
• Maximum flexibility in the positioning of the system components.

Legend:

1. Abutment Switch
2. Integrated Platform Switch.
3. Crestal fine thread.
4. Sandblasted/etched implant surface.
5. Progressive coarse thread.
6. Rounded apex.

S-M-L concept

• Clear, practical assortment:
  • 5 implant diameters
  • 5 implant lengths
  • 3 series of abutments
  • 2 connector geometries
• Optimal grading of the implant diameters means the appropriate implant can be used for the indication in question.
• One prosthetic screw for all implant diameters.
• All three series of abutments are available with conical or platform connector geometry.
• Low storage levels.

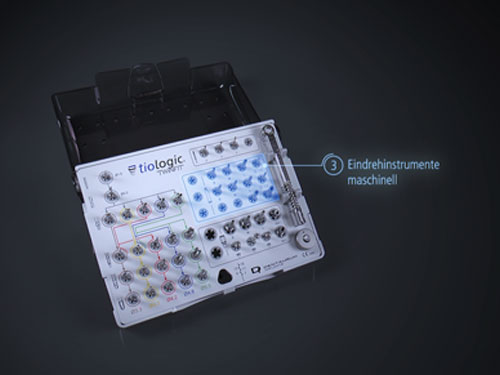

Surgical Tray for tioLogic^® TWINFIT

• Suitable for preparation with and without themo-disinfector.
• Smooth, easy-to-clean surface.
• Colored lines for easy and reliable marking of drilling results.
• All instruments are securely fixed.
• Familiar concept for the majority of users.

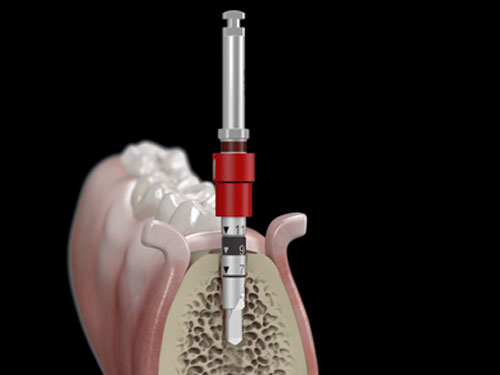

Rotating instruments ADVANCED

Flexibility meets efficiency.

• Suitable for the insertion of all tioLogic^® ST and tioLogic^® TWINFIT implant types.
• Implant preparation is gentle on the bone.
• Safe implant placement possible with or without depth stop sleeve.
• Color marking relating to implant diameter.
• Flute to collect autologous bone chip.
• Hexagonal fixation ensures optimal force transfer.

Gingiva former

Red/white aesthetics par excellence.

• Anatomical and cylindrical gingiva former for optimal gingiva management.
• For shaping the peri-implant soft tissue.
