The ideal path to achieving Class I.
Efficient. Proven. Intra-oral.



Simply safe.

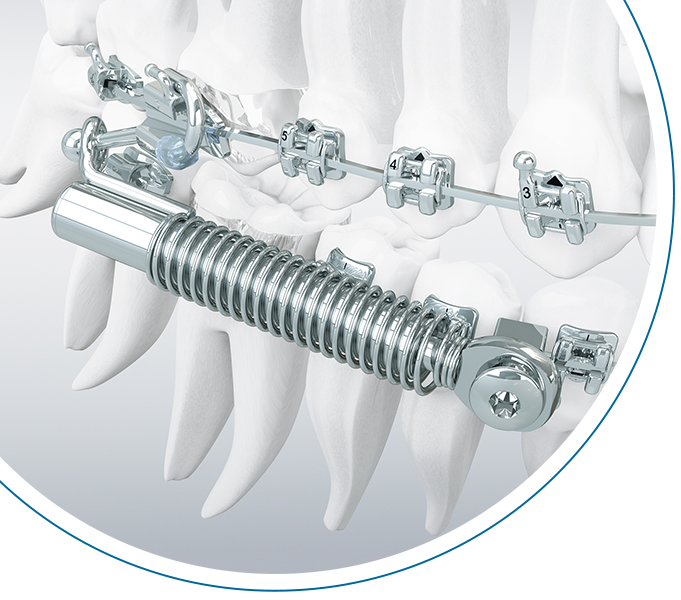

The Sabbagh Universal Spring (SUS³) is a telescope element with spring for universal intermaxillary use. It provides a perfect alternative for patients with compliance issues. The SUS³ acts with constant, gentle forces, mainly horizontal, on the temporomandibular joint, and can help to avoid the need for some extractions and dysgnathic surgery.

Indications

  • Distoclusion / Class II (uni-/bilateral).
  • Molar distalization (headgear substitute).
  • Dentoalveolar compensation of the occlusion (elastics substitute).
  • Midline displacement.
  • Gap closure (aplasia) / anchorage (alternative to mini screws).
  • Alternative to dysgnathia operation.
  • Temporomandibular dysfunction (repositioning effect).
  • Sleep apnea therapy.

The ideal solution for patients with:

  • poor compliance.
  • minimal residual growth.
  • difficulties using removable appliances.
    • illnesses of the upper respiratory tract or asthma.
    • allergy to components in acrylic.
    • handicap.

Convincing details.

1

Omega loop
ensures the ball retainer clasp does not slip through.

Laser-welded
for excellent biocompatibility and strength.

2

Rounded edges
for more intra-oral comfort.

3

Dual telescope design
for greater hygiene.

Integrated stop for the inner telescope
ensures the spring  does not disengage.

4

Conical-shaped tip of screw for a secure,
exact connection of SUS³ to the archwire.

Hexagon socket screw for fast, easy assembly.

One hexagon socket key for all SUS³ screws
part of the SUS³ starter set (REF 607-160-00).

5

Funnel-shaped design
of the head of the telescope rod for maximal transverse movement with perfect sagittal stability.

6

Conical design of the buccal section
of the SUS³ archwire adapter:
easy assembly and optimal
movement during treatment.

One-fits-all design
perfect with all types of brackets.

7

Activation accessories
SUS³ turbo spring for additional activation and spring effect. Standard activation with spacer rings.

First class treatment for your Class II patients.

Convincing advantages.



In handling

  • Universal application with only one size and one product for right and left side.
  • Easy handling and installation within only a few minutes.
  • Can be used as spring or hinge.

In treatment

  • Various types of activation for different indications.
  • Standard activation (spring effect and Herbst effect) with one or more slotted spacer rings (1 mm and 2 mm) crimped on the telescope rod.
  • The optional SUS³ turbo spring can be used if higher forces are required (adult treatment) or if dental calculus has hindered the function of the inner spring.

For the patient

  • Corrosion-resistant stainless steel and open tubes ensure good hygiene.
  • Excellent patient acceptance and comfort with flexible movement of the lower jaw. Constant gentle forces along with a multi-bracket appliance allow for shorter treatment time (only about 6 months).

SUS³ in a practical set



SUS³ Start-Set

REF 607-160-00

  • 2 x SUS³ telescope element
  • 2 x SUS³ telescope rod, assembled
  • 2 x SUS³ ball retainer clasp, ø 1,0 mm
  • 2 x SUS³ turbo spring (stainless steel),
    length 27 mm
  • 2 x spacer ring, crimpable, length 1 mm
  • 2 x spacer ring, crimpable, length 2 mm
  • 1 x hexagon socket key 1,5

Buy now

SUS³ Set

(without hexagon socket key 1.5)

REF 607-165-00

  • 2 x SUS³ telescope element
  • 2 x SUS³ telescope rod, assembled
  • 2 x SUS³ ball retainer clasp, ø 1,0 mm
  • 2 x SUS³ turbo spring (stainless steel),
    length 27 mm
  • 2 x spacer ring, crimpable, length 1 mm
  • 2 x spacer ring, crimpable, length 2 mm

Buy now

SUS - Step by step.

Fitting, activation and removal depicted on our videos.



Installation

Activation

Removal

SUS³ courses

All webinars >>
