We are delighted to welcome a new ceraMotion® family member:

ceraMotion® Z

Zirconium oxide is the first choice in materials for highly aesthetic prosthetic restorations due to its many possible uses, its biocompatibility and its visual shade matching ability. For many years we have been working intensely on building up the ceraMotion® portfolio.

We are working hard to develop high-quality materials for the digital ceramic restoration market. We use the best ceramic raw materials from Europe and Asia."

Dr. Francois Lelievre
PhD. Material Science
President Dentaurum Ceramics

"Zirconium oxide - the first choice for
prosthetic restorations which place the
highest demands
on material properties and aesthetics."

One solution for all requirements.

The six different ceraMotion® Z blanks cover all zirconium oxide-based indications and offer maximum reliability in shading and processing. State-of-the-art materials technology within a logical overall concept makes ceraMotion® Z the smart choice for natural all-ceramic restorations, created to meet high demands.

In particular, the multi-shaded, multi-layered zirconium oxide ceraMotion® Z Hybrid is a truly multi-purpose material.
In one blank, it combines the aesthetics of a 1000 MPa zirconium oxide with the strength of a tetragonal, highly translucent zirconium oxide. ceraMotion® Z Hybrid is pure aesthetics and suitable for all work in the anterior and posterior tooth area.



ceraMotion® Z
Hybrid

Flexural strength
≥ 800 MPa

Sintering temperature
1480°C

Translucency
44% – 47%

Available colors
Bleach 1, Bleach 2, A1, A2, A3, A3,5, A4, B1, B2, C2


Diameter ø
98,3

Available heights (mm)
14, 18, 22

Zirconium oxide type
strong
ultra-highly translucent
multi-shaded

Indications

  • Inlay
  • Onlays
  • Veneer
  • Single crown
  • Bridges up to 14 units
  • Cantilever bridge unit
  • premolar size




More Info

Buy now

ceraMotion® Z
Cubic Multishade

Flexural strength
≥ 600 MPa

Sintering temperature
1450°C

Translucency
49%

Available colors
A1, A2, A3, A3,5, A4, B1, B2, C2, D2


Diameter ø
98,3

Available heights (mm)
14, 18, 22

Zirconium oxide type
ultra-highly translucent
multi-shaded


Indications

  • Inlay
  • Onlays
  • Veneer
  • Single crowns
  • Bridges up to 3 units








More Info

Buy now

ceraMotion® Z
HT Multishade

Flexural strength
≥ 800 MPa

Sintering temperature
1530°C

Translucency
44% – 47%

Available colors
A1, A2, A3 A3,5, A4, B1, B2, C2, D2


Diameter ø
98,3

Available heights (mm)
14, 18, 22, 25

Zirconium oxide type
strong
highly translucent
multi-shaded

Indications

  • Inlay
  • Onlays
  • Veneer
  • Single crown
  • Bridges up to 14 units
  • Cantilever bridge unit
  • premolar size




More Info

Buy now

ceraMotion® Z
HT Shade

Flexural strength
≥ 800 MPa

Sintering temperature
1530°C

Translucency
43%

Available colors
A1, A2, A3, A3,5, A4, B1, B2, B3, B4, C1, C2,C3, C4, D2, D3, D4

Diameter ø
98,3

Available heights (mm)
14, 18, 22, 25

Zirconium oxide type
strong
highly translucent
shaded

Indications

  • Inlay
  • Onlays
  • Veneer
  • Single crown
  • Bridges up to 14 units
  • Cantilever bridge unit
  • premolar size




More Info

Buy now

ceraMotion® Z
HT White

Flexural strength
≥ 800 MPa

Sintering temperature
1530°C

Translucency
43%

Available colors
white



Diameter ø
98,3

Available heights (mm)
14, 18, 22, 25

Zirconium oxide type
strong
highly translucent
white

Indications

  • Inlay
  • Onlays
  • Veneer
  • Single crown
  • Bridges up to 14 units
  • Cantilever bridge unit
  • premolar size




More Info

Buy now

ceraMotion® Z
White

Flexural strength
≥ 800 MPa

Sintering temperature
1530°C

Translucency
39%

Available colors
white



Diameter ø
98,3

Available heights (mm)
14, 18, 22, 25

Zirconium oxide type
strong
highly translucent
multi-shaded

Indications

  • Inlay
  • Onlays
  • Veneer
  • Single crown
  • Bridges up to 14 units
  • Cantilever bridge unit
  • premolar size




More Info

Buy now

ceraMotion® Z Hybrid

Strong, aesthetic & multi-shaded.

The multi-shaded, multi-layered zirconium oxide ceraMotion® Z Hybrid is a truly multi-purpose material. In one blank, it combines the aesthetics of a cubic zirconium oxide with the strength of a highly translucent zirconium oxide. ceraMotion® Z Hybrid is pure aesthetics and suitable for all work in the anterior and posterior region. By means of a special high-tech process, two different zirconium oxide materials are processed in one blank. ceraMotion® Z Hybrid is available in the 9 most popular V-shades and 2 bleach shades and offers reliable shade reproduction.

The machinability of ceraMotion® Z Hybrid is excellent and the material is suitable for all open CAD/CAM systems. We primarily recommend this material for monolithic work that is aesthetically demanding, and for finishing with a ceramic paste (e.g. ceraMotion® One Touch). It is also possible to continue processing with a classic veneering ceramic (e.g. ceraMotion® Zr).

Product advantages:

  • Reliable reproducibility for high-level aesthetics
  • Multiple indications due to high strength in the dentin area
  • Natural and smooth shade transitions from cervical to incisal
  • Available in the 9 most popular V-shades + 2 bleach shades
  • Excellent machinability
  • Recommended sintering temperature 1480 °C / 2696 °F
  • Translucency 44% – 48% (non-shaded, 1 mm)
  • Optimum finishing with ceraMotion® One Touch

Technical data

Type II class 5 dental ceramic according to EN ISO 6872
Shades: Bleach 1, Bleach 2, A1, A2, A3, A3.5, A4, B1, B2, C2

  • Material: 3Y/4Y-ZrO2
  • Diameter: 98,3 mm
  • Flexural strength: ≥ 800 MPa
  • Density: > 6,04 g/cm3
  • Radio activity: < 0,02 Bq/g
  • Solubility: < 20 μg/cm²
  • CTE: 10,5 x 10-6 K-1

Chemical composition ceraMotion® Z Hybrid



ZrO2+HfO2+Y2O3 Y2O3 Al2O3 Fe2O3 Er2O3 further oxides
> 96.5% 5.8% - 9.7% < 0.5% < 0.5% < 2.0% < 0.5%



Notified body: mdc GmbH

These values were measured on test samples and are typical for the material. The product properties may, however, deviate from these values depending on the component design and the forming process.

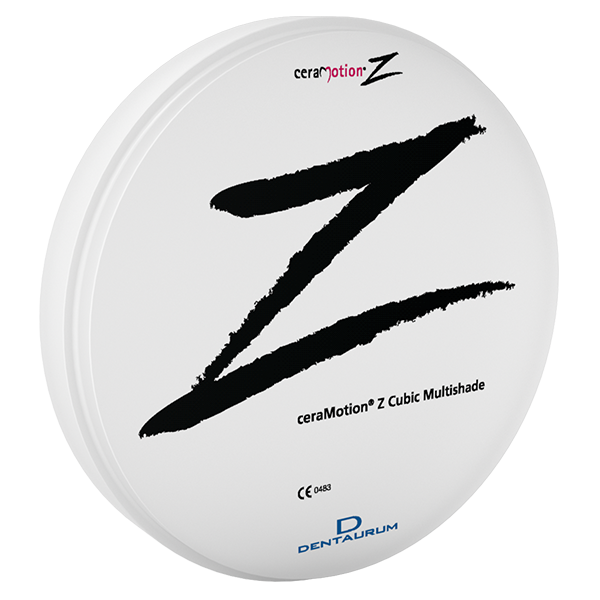

ceraMotion® Z Cubic Multishade

Ultra-highly translucent and multi-shaded.

The multi-shaded, pre-shaded and ultra-highly translucent zirconium oxide ceraMotion® Z Cubic Multishade is suitable for inlays, veneers, single crowns and 3-unit bridges.

With a translucency of 49%, the restoration shows natural light dynamics after sintering and meets the highest aesthetic demands.

ceraMotion® Z Cubic Multishade is available in the 9 most popular V-shades and offers reliable shade reproduction. The machinability of ceraMotion® Z Cubic Multishade is excellent and the material is suitable for all open CAD/CAM systems. We primarily recommend this material for monolithic work that is aesthetically demanding. It can be finished with a speedy, yet aesthetic veneering using a ceramic paste (e.g. ceraMotion® One Touch). It is also possible to continue processing with a classic veneering ceramic (e.g. ceraMotion® Zr). 49 % translucency 5Y-PSZ The symbol for smarter zirconia multi-shaded A1 A2 A3 A3.5 A4 B1 B2 C2 D2 14



Product advantages:

  • Reliable reproducibility for high-level aesthetics.
  • Natural and smooth shade transitions from cervical to incisal.
  • Available in the 9 most popular V-shades.
  • Particularly suitable for inlays, onlays, monolithic crowns and 3-unit bridges.
  • Excellent machinability.
  • Recommended sintering temperature 1450 °C / 2642 °F.
  • Translucency 49% (non-shaded, 1 mm).
  • Optimum finishing with ceraMotion® One Touch.

Technical data

Type II class 4 dental ceramic according to EN ISO 6872
Shades: A1, A2, A3, A3.5, A4, B1, B2, C2, D2

  • Material: ZrO2 5Y-PSZ
  • Diameter: 98,3 mm
  • Flexural strength: (Biaxial) 600 MPa
  • Density: > 6,04 g/cm3
  • Radio activity: < 0,02 Bq/g
  • Solubility: < 100 μg/cm²
  • CTE: 10,5 x 10-6 K-1

Chemical composition ceraMotion® Z Cubic Multishade



ZrO2+HfO2+Y2O3 Y2O3 Al2O3 Fe2O3 Er2O3 further oxides
> 96.5% 5.8% - 9.7% < 0.5% < 0.5% < 2.0% < 0.5%



Notified body: mdc GmbH

These values were measured on test samples and are typical for the material. The product properties may, however, deviate from these values depending on the component design and the forming process.

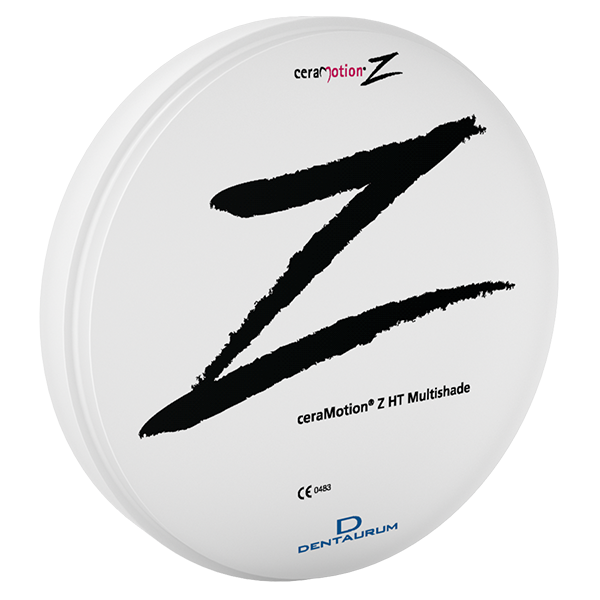

ceraMotion® Z HT Multishade

Strong, highly translucent and multi-shaded.

The multi-shaded, pre-shaded and highly translucent zirconium oxide ceraMotion® Z HT Multishade is suitable for all work in the anterior and posterior area.

The high strength of more than 1200 MPa (biaxially) offers maximum safety from the single crown to multi-element restorations or implant sub-structures. After sintering, the multi-layer shaded blank shows the natural shade gradient from the dentin to the incisal area, in a flowing gradient.

ceraMotion® Z HT Multishade is available in the 9 most popular V-shades and offers reliable reproducibility whilst meeting high aesthetic demands.

The machinability of ceraMotion® Z HT Multishade is excellent and the material is suitable for all open CAD/CAM systems. We primarily recommend this material for monolithic work that is aesthetically demanding. It can be finished with a speedy, yet aesthetic veneering using a ceramic paste (e.g. ceraMotion® One Touch). It is also possible to continue processing with a classic veneering ceramic (e.g. ceraMotion® Zr).



Product advantages:

  • Natural and smooth shade transitions from cervical to incisal.

  • Highly efficient (no preshading required).

  • Reliable reproducibility of the classic V-shades for high aesthetic demands.

  • Multiple indications due to high strength.

  • Particularly suitable for monolithic crowns and bridges.

  • Excellent machinability, recommended sintering temperature 1530 °C / 2786 °F.

  • Translucency 43% (non-shaded, 1 mm).

  • Optimum finishing with ceraMotion® One Touch.

Technical data

Type II class 5 dental ceramics according to EN ISO 6872
Shades: A1, A2, A3, A3.5, A4, B1, B2, C2, D2

  • Material: 3Y-ZrO2
  • Diameter: 98,3 mm
  • Flexural strength: ≥ 800 MPa
  • Density: > 6,08 g/cm3
  • Radio activity: < 0,02 Bq/g
  • Solubility: < 10 μg/cm²
  • CTE: 10,5 x 10-6 K-1

Chemical composition ceraMotion® Z HT Multishade



ZrO2+HfO2+Y2O3 Y2O3 Al2O3 Fe2O3 Er2O3 further oxides
> 97.7% 4.4% - 5.5% < 0.5% < 0.3% < 1.0% < 1.2%



Notified body: mdc GmbH

These values were measured on test samples and are typical for the material. The product properties may, however, deviate from these values depending on the component design and the forming process.

ceraMotion® Z HT Shade

Strong, highly translucent and shaded.

The monochrome, preshaded and highly translucent zirconium oxide ceraMotion® Z HT Shade is suitable for all work in the anterior and posterior area.

The high strength of more than 1200 MPa (biaxially) offers maximum safety from the single crown to multi-element restorations or implant sub-structures. The blanks have already been shaded homogeneously, making it possible to work highly efficiently, since aesthetic individualization can begin immediately after sintering. The good shading of the blanks ensures a reliable reproducibility of all V-Classic shades.

The machinability of ceraMotion® Z HT Shade is excellent and the material is suitable for all open CAD/CAM systems. We primarily recommend this material for monolithic work. It can be finished with a speedy, yet aesthetic veneering using a ceramic paste (e.g. ceraMotion® One Touch). It is also possible to continue processing with a classic veneering ceramic (e.g. ceraMotion® Zr).

Product advantages:

  • Highly efficient (no preshading required).
  • Ensures consistent shade results thanks to pre-shaded blanks.
  • Reliability due to very high strength.
  • Particularly suitable for monolithic crowns and bridges.
  • Excellent machinability, recommended sintering temperature 1530 °C / 2786 °F.
  • Translucency 43% (non-shaded, 1 mm).
  • Optimum finishing with ceraMotion® One Touch.

Technical data

Type II class 5 dental ceramics according to EN ISO 6872
Shades: A1, A2, A3, A3.5, A4, B1, B2, B3, B4, C1, C2, C3, C4, D2, D3, D4

  • Material: 3Y-ZrO2
  • Diameter: 98,3 mm
  • Flexural strength: ≥ 800 MPa
  • Density: > 6,08 g/cm3
  • Radio activity: < 0,02 Bq/g
  • Solubility: < 10 μg/cm²
  • CTE: 10,5 x 10-6 K-1

Chemical composition ceraMotion® Z HT Shade



ZrO2+HfO2+Y2O3 Y2O3 Al2O3 Fe2O3 Er2O3 further oxides
> 97.7% 4.4% - 5.5% < 0.5% < 0.3% < 1.0% < 1.2%



Notified body: mdc GmbH

These values were measured on test samples and are typical for the material. The product properties may, however, deviate from these values depending on the component design and the forming process.

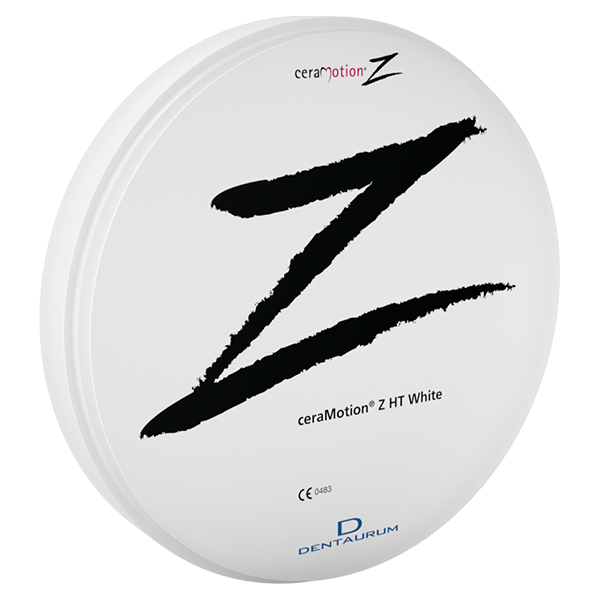

ceraMotion® Z HT White

Strong & highly translucent.

This classic, highly translucent and reliable zirconium oxide ceraMotion® Z HT White is suitable for all work in the anterior and posterior area.

The high strength of more than 1200 MPa (biaxially) offers high safety from the single crown to multi-element restorations or implant sub-structures. Due to the increased translucency of 43%, ceraMotion® Z HT White is the optimal basis for the production of aesthetic restorations.

The machinability of ceraMotion® Z HT White is excellent and the material is suitable for all open CAD/CAM systems. We recommend this material primarily as a framework material for classic veneering (e.g. with ceraMotion® Zr).

Product advantages:

  • Reliability due to very high strength.
  • Excellent machinability.
  • Suitable for shading.
  • Recommended sintering temperature 1530 °C / 2786 °F.
  • Translucency 43% (non-shaded, 1 mm).
  • Optimum finishing/veneering with ceraMotion® Zr.

Technical data

Type II class 5 dental ceramic according to EN ISO 6872

  • Material: 3Y-ZrO2
  • Diameter: 98.3 mm
  • Flexural strength: ≥ 800 MPa
  • Density: > 6.06 g/cm3
  • Radio activity: < 0.02 Bq/g
  • Solubility: < 10 µg/cm²
  • CTE: 10.5 x 10-6 K-1



Chemical composition ceraMotion® Z HT White



ZrO2+HfO2+Y2O3 Y2O3 Al2O3 further oxides
> 99.0% 4.5% - 6.0% < 0.5% < 0.5%



Notified body: mdc GmbH

These values were measured on test samples and are typical for the material. The product properties may, however, deviate from these values depending on the component design and the forming process.

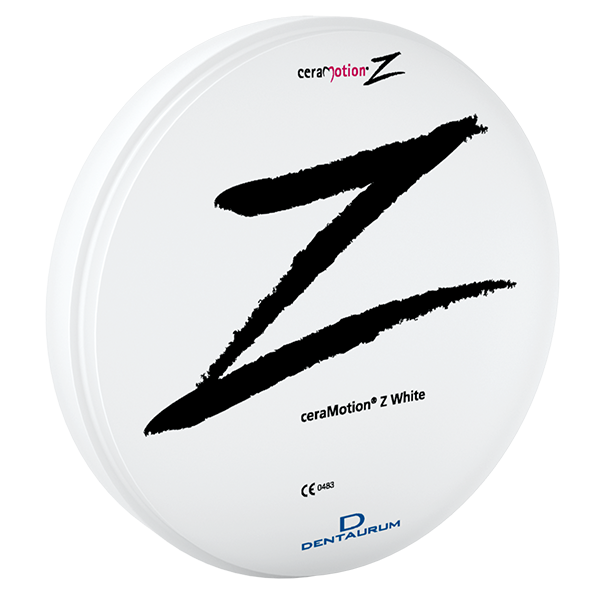

ceraMotion® Z White

Strong & proven.

The proven and reliable 3Y-TZP- A high-performance zirconium oxide is suitable for all work in the anterior and posterior area.

The high strength of over 1200 MPa (biaxially) offers a high level of safety, particularly for multi-element restorations or stable implant sub-structures. Due to the reduced translucency of 39%, ceraMotion® Z White allows the optimal masking of discolored stumps and metal abutments.

The machinability of ceraMotion® Z White is excellent and the material is suitable for all open CAD/CAM systems. We recommend this material primarily as a framework material for classic veneering (e.g. with ceraMotion® Zr).

Product advantages:

  • Reliability due to very high strength
  • Stump/abutment masking possible due to reduced translucency
  • Excellent machinability
  • Suitable for shading
  • Recommended sintering temperature 1530 °C / 2786 °F
  • Translucency 39% (non-shaded, 1 mm)
  • Optimum finishing/veneering with ceraMotion® Zr

Technical data

Type II class 5 dental ceramic according to EN ISO 6872

  • Material: 3Y-ZrO2
  • Diameter: 98.3 mm
  • Flexural strength: ≥ 800 MPa
  • Density: > 6.06 g/cm3
  • Radio activity: < 0.02 Bq/g
  • Solubility: < 10 µg/cm²
  • CTE: 10.5 x 10-6 K-1

Chemical composition ceraMotion® Z White



ZrO2+HfO2+Y2O3 Y2O3 Al2O3 further oxides
> 99.0% 4.5% - 6.0% < 0.5% < 0.5%



Notified body: mdc GmbH

These values were measured on test samples and are typical for the material. The product properties may, however, deviate from these values depending on the component design and the forming process.



Making good use of synergies.

The ceraMotion® products can be combined with one another very efficiently. The processing technology and the choice of material combinations within the ceraMotion® product range can be individually adapted to the respective case and freely selected.

Both ceraMotion® Zr veneering ceramic and the unique ceramic paste ceraMotion® One Touch harmonize perfectly with lithium disilicate (ceraMotion® LiSi) and zirconium oxide (ceraMotion® Z).

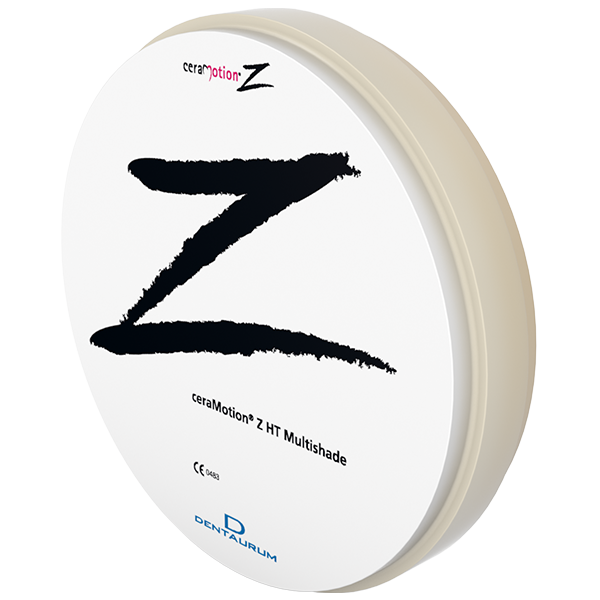

Zirconium oxide blanks

The wide choice of ceraMotion® Z zirconium oxide blanks offers a full range of aesthetic, all-ceramic materials in a wide variety of shades, translucencies and strengths.

  • ceraMotion® Z Hybrid
  • ceraMotion® Z Cubic Multishade
  • ceraMotion® Z HT Multishade
  • ceraMotion® Z HT Shade
  • ceraMotion® Z HT White
  • ceraMotion® Z White

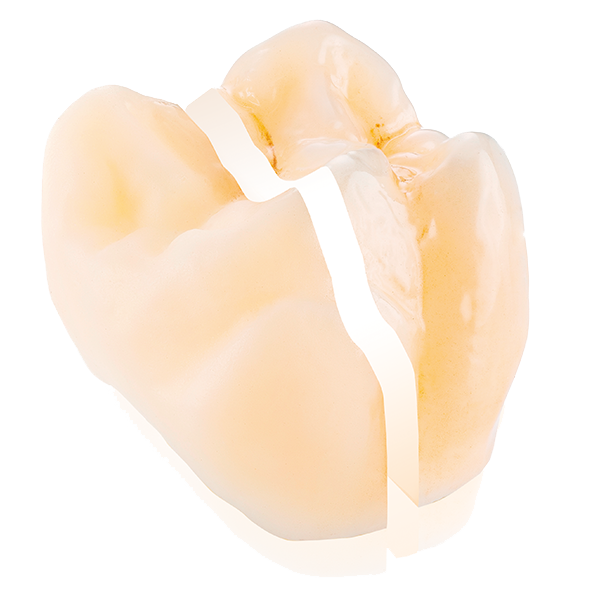

Finishing pastes

ceraMotion® One Touch is the first veneering ceramic in paste form. These are 2D and 3D pastes that have been specially developed for the pink and white aesthetics of all-ceramic restorations made of lithium disilicate and zirconium oxide.





my first ceramic in paste

ceraMotion® LiSi                      Finished with
before finishing process           ceraMotion® One Touch

Veneering ceramics

Veneering ceramic for frameworks in zirconium oxide and lithium disilicate

  • Low firing temperature of 750 °C /1382 °F.
  • High shade vitality, even in the case of multiple
    firings.
  • Homogeneous and bright ceramics already after the
    first dentin firing.
  • Maximum bonding strength with zirconium oxide
    frameworks thanks to ideal CTE setting.
  • Natural aesthetics due to special masses for
    opalescence, fluorescence and translucency.









Aesthetics from one source.

"The design – be it monolithic, cut-back, partially or fully veneered always depends on the patient case to be treated. From my experience, it is of great advantage if the framework material and the veneering ceramics come from a single source, because only the manufacturer knows the shadings and can match them perfectly."

ZTM Werner Gotsch






© Werner Gotsch, Master dental technician



„Patient satisfaction is the best recommendation for my practice. For many years now, all-ceramic solutions have been a central component for producing highly aesthetic prosthetic restorations. ceraMotion® Z Hybrid – a new milestone".“

Dr. med. dent. Claus-Bertram Triebel







Restoration crown 11 made of ceraMotion® Z Hybrid, ceraMotion® Zr and ceraMotion® One Touch.

Book a LIVE DEMO now.

Book an appointment for a free
LIVE DEMO and learn about the advantages of ceraMotion®!

Nothing beats your own personal impression. Use the contact form to arrange for your personal ceraMotion® expert to come into your company.



Book an appointment for a
LIVE DEMO now. >>

Courses & Events



Title / Description Date Location Speaker Language

Finition avec les pâtes ceraMotion® One Touch

Dans ce webinaire, vous découvrirez les avantages de ceraMotion® One Touch / No Limits et Pink.

- Présentation des pâtes de finition
- Gamme de produits
- Applications potentielles en théorie et en pratique


Nous traiterons vos données personnelles avec soin et en toute confidentialité en respectant les directives en matière de protection des données. Le transfert de ces données à des tiers se fait exclusivement sur la base des dispositions légales ou si cela est impérativement nécessaire pour atteindre la finalité de leur collecte. Pour plus d'informations sur la protection des données, veuillez consulter notre déclaration sur la protection des données. Lien : https://www.dentaurum.de/fra/datenschutz-31174.aspx

Watch recording

Date
-

Ort
Lauf (bei Nürnberg),

Speaker

Speaker DT François Hartmann - Dentaurum Prosthetics

DT François Hartmann - Dentaurum Prosthetics

Professional history
1983

High school graduation
1986 – 1991

Vocational education as dental technician, occupation in a commercial laboratory
since 1991

Employee at Dentaurum as dental technician in an application laboratory for prosthetic dentistry.
Field of activity

Dental lectures and seminars in Germany and international.

Seminars

Language
French

Cost

Excl. VAT

- Lauf (bei Nürnberg)
Speaker DT François Hartmann - Dentaurum Prosthetics

DT François Hartmann - Dentaurum Prosthetics

Professional history
1983

High school graduation
1986 – 1991

Vocational education as dental technician, occupation in a commercial laboratory
since 1991

Employee at Dentaurum as dental technician in an application laboratory for prosthetic dentistry.
Field of activity

Dental lectures and seminars in Germany and international.

Seminars
French Watch recording

Magic in a Jar - with ceraMotion®

Watch recording

Date
-

Ort
Lauf (bei Nürnberg),

Speaker

Speaker Terry Whitty

Terry Whitty

Professional history

Dental technician, dental technology consultant
Since 1988

Owner and founder of FABDENT dental laboratory and supply company

FABDENT specialises in high tech manufacturing using the latest advances in intra- and extra-oral scanning, CAD/CAM, milling, grinding and 3D printing, covering most specialties including orthodontics, fixed and removable prosthetics, computerised implant planning and guidance, TMD, sleep appliances and paediatrics.

Author of over 150 internationally published articles.
Field of activity

Regular international lectures on a variety of dental technology and material science subjects.

Seminars

Language
English

Cost

Excl. VAT

- Lauf (bei Nürnberg)
Speaker Terry Whitty

Terry Whitty

Professional history

Dental technician, dental technology consultant
Since 1988

Owner and founder of FABDENT dental laboratory and supply company

FABDENT specialises in high tech manufacturing using the latest advances in intra- and extra-oral scanning, CAD/CAM, milling, grinding and 3D printing, covering most specialties including orthodontics, fixed and removable prosthetics, computerised implant planning and guidance, TMD, sleep appliances and paediatrics.

Author of over 150 internationally published articles.
Field of activity

Regular international lectures on a variety of dental technology and material science subjects.

Seminars
English Watch recording

More Ceramic Courses, Events, LIVE Webinars and Webinars On Demand: Overview & registration.



Ceramic solutions – made by Dentaurum.

Under the successful umbrella brand ceraMotion®, Dentaurum Ceramics produces more than 1500 products in
compliance with the highest quality standards.

These include products from all areas for modern all-ceramic restorations - from the framework material to the glaze.

Monolithic, cut-back, partially or fully veneered

The manufacturing method depends on the patient case to be treated. Whatever the technology, ceraMotion® has the right answer for all methods.

Paste Ceramics

Lithium Disilicate

Glaze Pastes


PasteGlaze


PasteGlazeBright

Veneering Ceramics

Zirconium Oxide

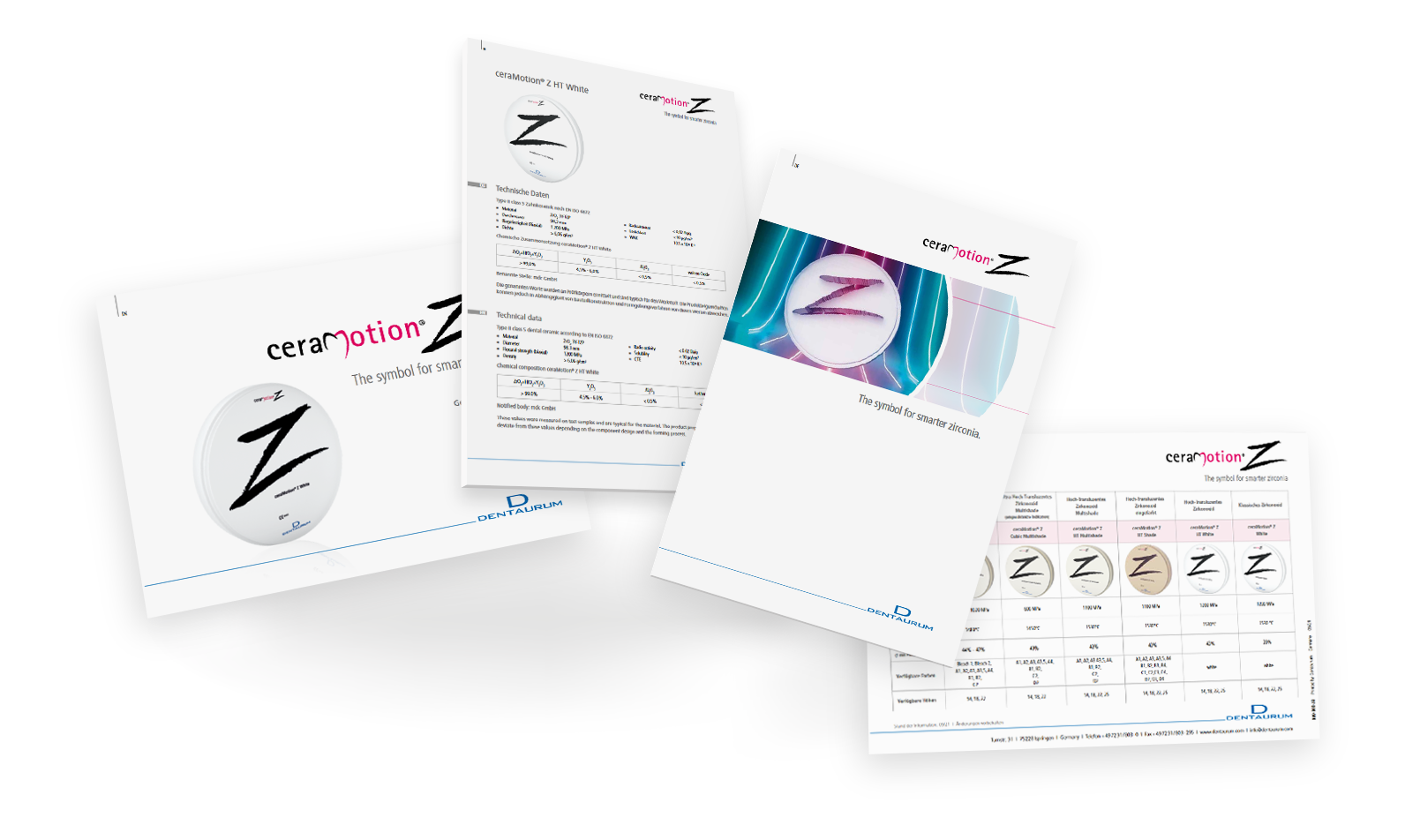

Downloads

Product information and more...



All downloads for ceraMotion® Z you will find in our download center.
